Solution: DITEL® V81 Maritime VSAT
The V81 was chosen for its superior tracking accuracy, rugged design, and compatibility with the vessel’s iDirect modem. Its compact yet high-performance profile made it an ideal fit for the cargo ship’s radome setup.
Installation Highlights

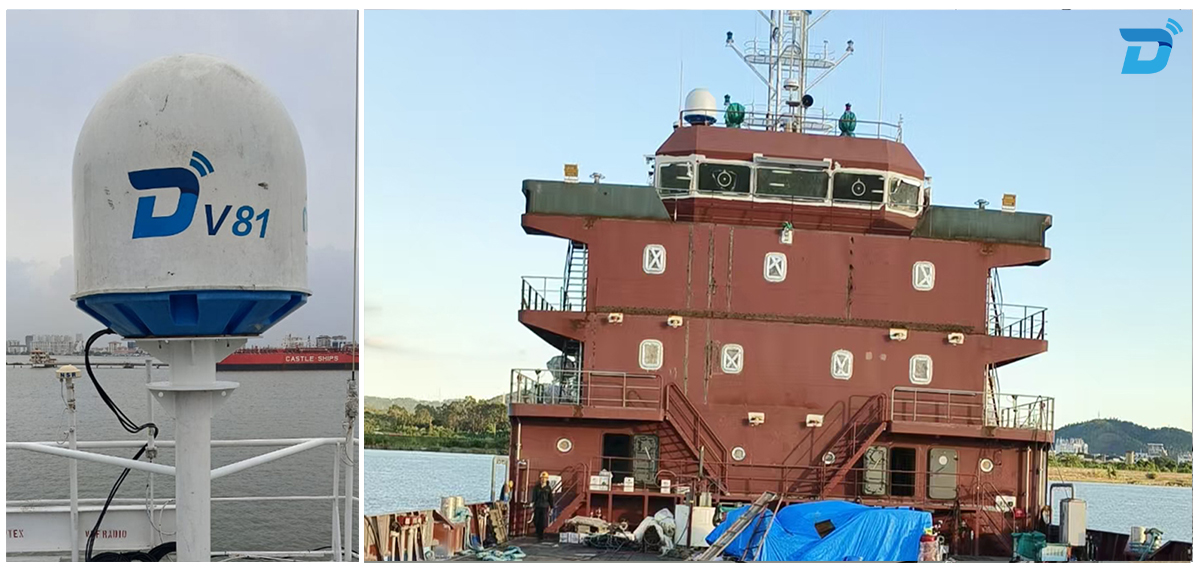

The antenna was mounted on the wheelhouse top using a custom-made bracket, allowing a clear 360° view of the sky.
The 1-cable solution significantly simplified routing from the antenna to the below-deck equipment room, reducing installation time and potential points of failure.
The built-in Wi-Fi ACU enabled the crew to connect directly to the system for initial configuration and ongoing monitoring via smartphones and laptops.
Performance at Sea
Since installation, the V81 has delivered:
High Tracking Stability: Using its 4-axis tracking and inertial guidance with GPS/BDS, the antenna maintains lock even in heavy swells and high winds.
Continuous Connectivity: The system supports daily video conferences between the crew and shore-based management, real-time weather updates, VoIP calls, and high-speed internet browsing.
Remote Troubleshooting: The vessel’s IT manager can access the ACU web interface from shore to monitor status or adjust settings, minimizing downtime.
Technical Advantages in Practice
Fast Acquisition & Re-lock: The antenna achieves initial signal lock in under 60 seconds and re-lock within 3 seconds after blockage—essential when sailing under bridges or near obstacles.
Reliable in Extreme Conditions: With an IP56 rating and operating temperature range of -25°C to 60°C, the V81 performs reliably in tropical heat and freezing North Atlantic waves alike.
Conclusion
The DITEL® V81 Ku-Band VSAT antenna has proven to be a vital asset aboard cargo ship, delivering enterprise-grade connectivity and robustness required by modern cargo vessels. Its combination of advanced tracking, ease of installation, and remote management capabilities makes it an excellent choice for ship owners looking to enhance their fleet’s communication capabilities.
