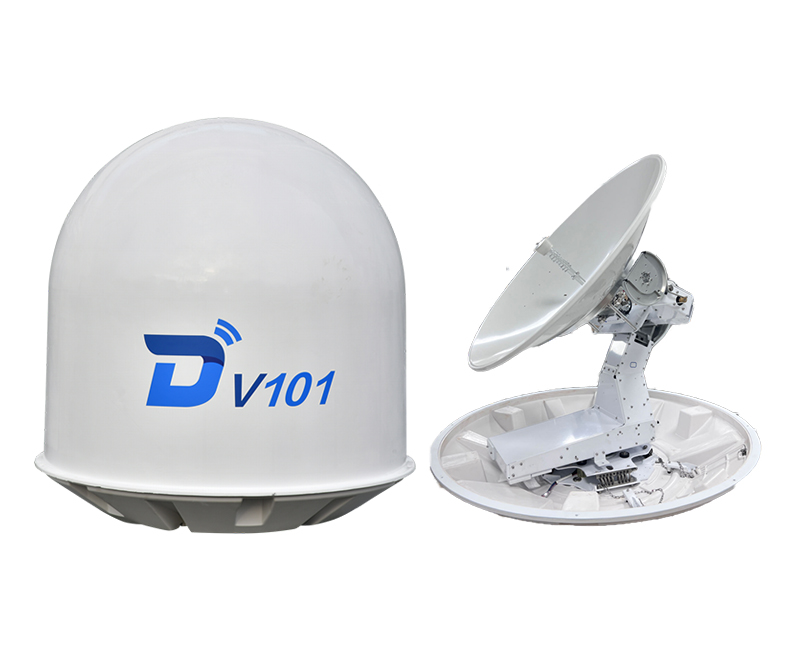

Ditel V101 is a 105cm Ku-Band maritime VSAT antenna system ideal for global commercial vessels, offshore vessels, oil and gas platform, etc. With its 3-axis stabilized platform and 5 patent technologies, Ditel V101 offers superior high tracking performance, supporting remote control by PC and mobile, video monitoring, broadband, video conference, VoIP and other network applications. With the ability to select from a range of satellites, the Ditel V101 is ideal for deep-ocean vessels with high demands for onboard broadband services.
• High Tracking Accuracy Adopting an upper inertial navigation scheme, an accurate error model, and efficient compensation and correction of errors, resulting in high tracking accuracy.
• Modem Compatibility Compatible with a variety of modems, including iDirect, UHP, Newtec, Gilat, Comtech, Hughes, Anovo, Spacebridge and many more.
•Open Platform Compatibility The ACU integrates the ABS function and supports the iDirect OpenAMIP protocol for auto beam switching.
• Stable and Reliable Tracking Adoption of reflector surface tracking algorithm, based on three-dimensional relationships of signal level, azimuth angle, and elevation angle, ensuring stable and reliable tracking.
• Easy Installation Both 1-cable and 3-cable solutions available for connecting the antenna to indoor units, ensuring convenient installation and simplified wiring.
•Advanced System Control The ACU has built-in Wi-Fi, allowing wireless device users to directly connect. Advanced system control and antenna status monitoring can be achieved using an ACU web interface.
| Physical Parameters |
| Radome dimension(WxH) |
139.4*140cm (54..9*53 inch) |
| Reflector diameter |
106 cm (41.7 inch ) |
| Radome color |
White/blue |
| Radome materials |
FRP/SMC |
| Weight |
115kg (253 lbs) |
| Operating temp. range |
-25~60℃ |
| Environmental humidity |
0~95% |
| Waterpfroofing grade |
IP56 |
| Satellite band |
KU-Band |
| Antenna type |
Ring focus rear feed antenna |
| ACU size |
350*230*50.98mm (Without bracket） |
| ACU weight |
2.9kg |
| Tracking Parameters |
| Stabilization forms |
3-axis stabilized: Azimuth, Elevation，Roll |
| Tracking forms |
3-axis tracking: Azimuth, Elevation, Roll |
| Tracking and location mode |
Built-in inertial guidance+BDS/GPS |
| Azimuth range |
Unlimited |
| Elevation range |
-10° ~112° |
| Roll range |
±42° |
| Carrier Tracking speed |
Elevation: ±20° @4S |
| Roll: ±20° @5S |
| Azimuth: ±90° @36S |
| Initial lock |
≤118S |
| Re-lock after break lock time |
Break lock＜1Min; Re-lock＜1Min |
| Tracking braking system |
Azimuth,Elevation,Roll,Skew |
| Communication Parameters |
| TX frequency |
13.75~14.5GHz |
| TX gain |
41.9dBi (14.25GHz) |
| RX frequency |
10.7~12.75GHz (Ku-band) |
| RX gain |
40.8dBi (12.5GHz) |
| G/T (Clear sky 30° elevation) |
18.4dB/K |
| Power input |
AC:100V~240V /50Hz;DC:15-36V |
| Power output |
DC:24V |
| Static power |
33W (Without BUC power) |
| Dynamic power |
44W (Without BUC power） |
| BUC power |
4W/6W/8W/16W (Optional) |
| LNB KU-Band |
L.O:9.75/10.6/11.3GHz (Customizable) |
| Cross-POL isolation |
>30dB |
| Polarization |
Linear polarization |
| Min EIRP |
42 dBW |
