Ditel V100KUF 105cm1.05 m KU band Fixed 2-axis VSAT
Ditel V100KUF 105cm1.05 m KU band Fixed 2-axis VSAT

Ditel V100KUF 105cm1.05 m KU band Fixed 2-axis VSAT

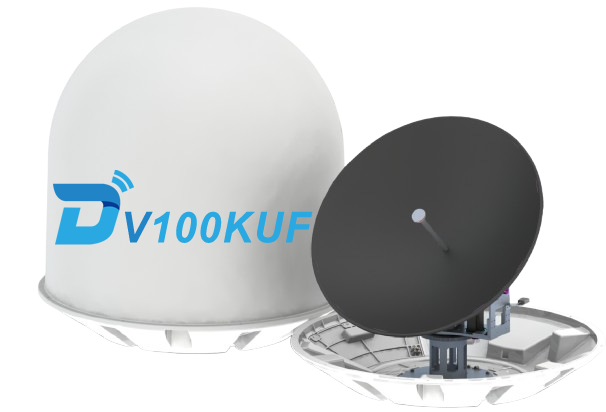

Ditel V100KUF is a 105cm KU-Band fixed land based antenna designed for remote locations such as military bases, mining sites, and oil rigs, where traditional communication infrastructure solutions are not feasible. With its 2-axis
stabilized platform,clo
INQUIRY
Description



Ditel V100KUF is a 105cm KU-Band fixed land based antenna designed for remote locations such as military bases, mining sites, and oil rigs, where traditional communication infrastructure solutions are not feasible. With its 2-axis stabilized platform,cloud servo control antenna system and carbon fiber reflector surface, V100KUF offers superior high tracking performance. It supports remote control by PC and mobile, video monitoring, broadband, video conference, VoIP and other network applications. With the ability to select from a range of satellites, the Ditel V100KUF is ideal for remote sites with high demands for broadband services.




• Superhigh gain antenna
 Ring focus rear feed antenna, carbon fiber reflector surface to increase antenna gain and a fiberglass cover is used to reduce loss and improve signal strength providing  high   communication  performance.

• High tracking accuracy
 Adopting an upper inertial navigation scheme, an accurate error model and efficient compensation and correction of errors, resulting in high tracking accuracy.

• Open platform compatibility
 The antenna controller integrates ABS ( automatic beam switching ) function, supports OpenAMIP protocol, establishes communication with Modem , and automatically switches       beams.

• Stable & reliable tracking
Each transmission shaft is rotated by metal gears and driven by a stepper motor. The stepper motor has high precision, can perform high-precision positioning, has stable operation and simple structure.

• Easy setup & installation
Special mounting bracket, no need to remove the antenna cover before installation, the outdoor integrated cable can be connected to the interface on the antenna base, the installation and wiring are convenient.

•Advance control system
The ACU has built-in WiFi, allowing wireless device users to directly connect. Advanced system controller has OLED display and can view antenna status, sat status and alarm information and a lot more monitoring can be done using an ACU web interface







Radome dimension(WxH) 134.5*139.5cm (52.95*54.92 inch)
Reflector diameter 105 cm (41.3 inch )
Weight 80kg (176.37 lbs)
Radome color Color
Radome materials FRP honeycomb
Earthquake resistance Magnitude 9 earthquake
Operating temp. range -40~60℃
Wind resistance ≤21m/sNormaloperation
≤35m/sRemainsnoteffected
Environmental humidity 0~95%
Operatingtemp. range -40℃~60℃
Waterproofing grade IP66
Satellite band Ku-band
Antenna type Ring focus rear feed antenna
ACU size 480*330*50mm（Without bracket）
ACU weight 3.85kg（8.48lbs)
Platform 2-axis stabilized,2-axis tracking
AZ range/ tracking rate
0 °~350 °, non continuous rotation
EL range/ tracking rate 2.5°~92.5°
Polarization range ±167.5°
Initial lock ≤90S
Tracking & location mode Built-in inertial guidance & BDS/GPS
Tracking mode Carrier/Beacon tracking
Tracking braking system Azimuth,Elevation,Roll,Skew
Tracking type Automatic tracking
TX frequency 13.75~14.5GHz
TX gain 41.9dBi (14.25GHz)
RX frequency 10.7~12.75GHz (Ku-band)
RX gain 40.6dBi (12.5GHz)
G/T 19.9dB/K (Clear sky, 30° Elevation)
Power input DC:-48V or +48V
Power output DC:48V
First side lobe
≤-18dB
Static power
50W (Without BUC power)
Dynamic power 90W (Without BUC power）
BUC power 16W
LNB KU-Band L.O.9750/10600 Ghz
Polarization Linear polarization
Min EIRP 42 dBW
