Ditel V100KAF 105cm1.05 m KU band Fixed 2-axis VSAT
Ditel V100KAF 105cm1.05 m KU band Fixed 2-axis VSAT

Ditel V100KAF 105cm1.05 m KU band Fixed 2-axis VSAT

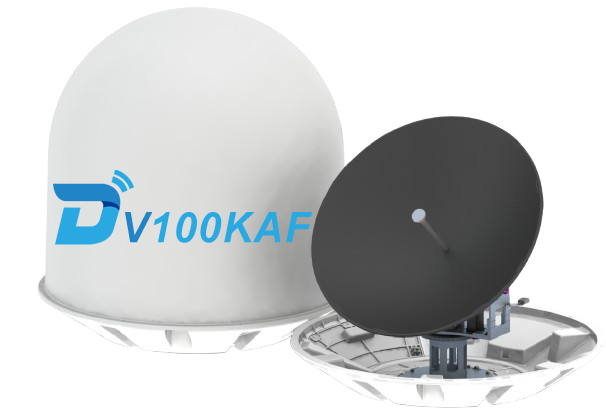

Ditel V100KAF is a 105cm Ka-Band fixed land based antenna designed for remote locations such as military bases, mining
sites, and oil rigs, where traditional communication infrastructure solutions are not feasible. With its 2-axis stabilized
platform,
INQUIRY
Description





Ditel V100KAF is a 105cm Ka-Band fixed land based antenna designed for remote locations such as military bases, mining sites, and oil rigs, where traditional communication infrastructure solutions are not feasible. With its 2-axis stabilized platform,cloud servo control antenna system and carbon fiber reflector surface, V100KAF offers superior high tracking performance. It supports remote control by PC and mobile, video monitoring, broadband, video conference, VoIP and other network applications. With the ability to select from a range of satellites, the Ditel V100KAF is ideal for remote sites with high demands for broadband services.




• Super high gain antenna.
 Ring focus rear feed antenna, carbon fiber reflector surface to increase antenna gain and a fiberglass cover is used to reduce loss and improve signal strength providing high   communication performance.

• Stable & reliable tracking
Each transmission shaft is rotated by metal gears and driven by a stepper motor. The stepper motor has high precision, can perform high-precision positioning, has stable operation and simple structure.

• High tracking accuracy
Adopting an upper inertial navigation scheme, an accurate error model and efficient compensation and correction of errors, resulting in high tracking accuracy.

• Easy setup & installation
Special mounting bracket, no need to remove the antenna cover before installation, the outdoor integrated cable can be connected to the interface on the antenna base, the installation and wiring are convenient.

•Open platform compatibility
The antenna controller integrates ABS ( automatic beam switching ) function, supports OpenAMIP protocol, establishes communication with Modem , and automatically switches beams.

• Advance control system
The ACU has built-in WiFi, allowing wireless device users to directly connect.Advanced system control and antenna status monitoring can be achieved using an ACU web interface.





  14.3kg
Radome dimension(WxH) 134.5*139.5cm (52.95*54.92 inch)
Reflector diameter 105 cm (41.3 inch )
Radome color White
Radome material FRP honybomb
Weight 80kg (176.37 lbs)
Wind resistance ≤21m/sNormaloperation
≤35m/sRemainsnoteffected
Environmental humidity 0~95%
Operating temp. range -40~60℃
Waterproofing grade IP66
Satellite band Ka-Band
Antanna type Ring focus rear  feed antenna
Platform 2-axis stabilized,2-axis tracking
ACU size 480*330*50mm（Without bracket）
ACU weight 3.85kg
AZ range/ tracking rate
0 °~350 °, non continuous rotation
EL range/ tracking rate 2.5°~92.5°
Polarization range ±90°
Initial lock ≤90S
Tracking & location mode Built-in inertial guidance & BDS/GPS
Tracking mode Carrier/Beacon tracking
Tracking braking system Azimuth,Elevation,Roll,Skew
Tracking type Automatic tracking
TX frequency 29~30GHz
TX gain 47.5dBi (29.5GHz)
RX frequency 17.8~20.2GHz (Ku-band)
RX gain 44.0dBi (19.0GHz)
G/T 19.7dB/K (Clear sky, 30° Elevation)
Power input DC:-48V or +48V
Power output DC:48V
First side lobe
≤-16dB
Static power
50W (Without BUC power)
Dynamic power 90W (Without BUC power）
BUC power 10W
LNB KU-Band L.O.16.85/18.05 Ghz
Polarization Linear polarization
Min EIRP 43.5 dBW
