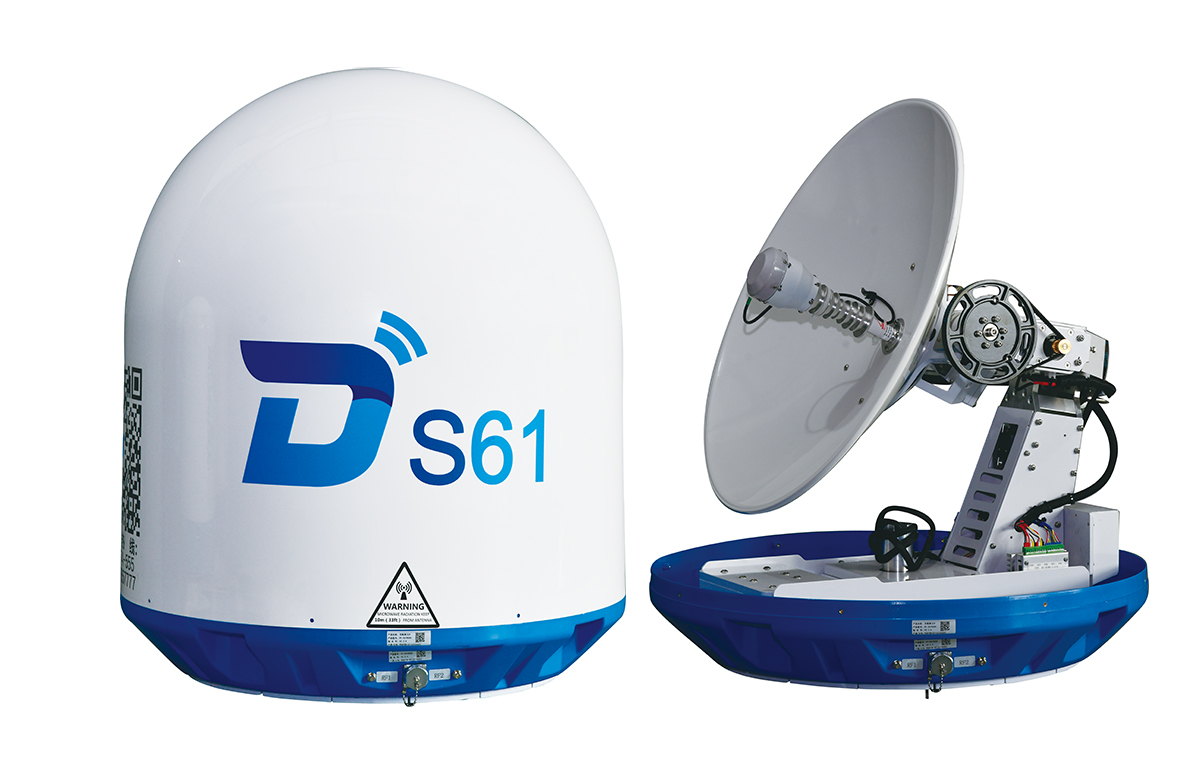

Ditel S61 65cm Ku band marine TV systems
Ditel S61 65cm Ku band marine TV systems

Ditel S61 65cm Ku band marine TV systems

Item No.: S61
The Ditel S61 marine TV systems offers one of the highest signal strength available with a 65cm (25.59”) reflectors, significantly increasing the coverage area.
INQUIRY
Description





Ditel S61 marine TV systems offers one of the highest signal strength available with a 65cm (25.59”) reflectors, significantly increasing the coverage area.It is widely used in anywhere in the world as long as the area of Minimum EIRP is over 46dBW. 3-axis is preferred in the vicinity of the equator.





• Friendly multi-platform user interface.
• Ability to preset satellite parameters and switch between different satellites.
• LNB compatible with circular polarization or linear polarization.
• High performance and high stability.
• Automatic tracking and skew control.
• Uninterrupted viewing of full Ku-band channel.





 Radome dimension(WxH)  75*85cm (29.5*33.46 inch)
 Reflector diameter  65cm (25.59 inch)
 Weight  45kg (99 lbs)
 Radom colour  White/Blue
 Radom material  ASA/ABS
 Environmental humidity                                  0-95%
 Operating temp. range   -20~60℃
 Platform  3-axis stabilized, 4-axis tracking
 AZ range/ tracking  rate   0°～680°/ ±8°@15S
 EL range/ tracking  rate   -10°~105°/ ±20°@5S
 Roll range/ tracking rate  ±30°/ ±20°@5S
 Skew range  ±167.5°
 Initial lock                ≤2Min
 Input frequency   10.70~12.75GHz
 RX gain  36.7dBi  (12.5GHz)
 Power input   AC: 100~240V/50Hz/DC:15~36V
 Min. EIRP  46dBW
 Polarization  Linear polarization
 Antenna type  Ring focus rear feed antenna
