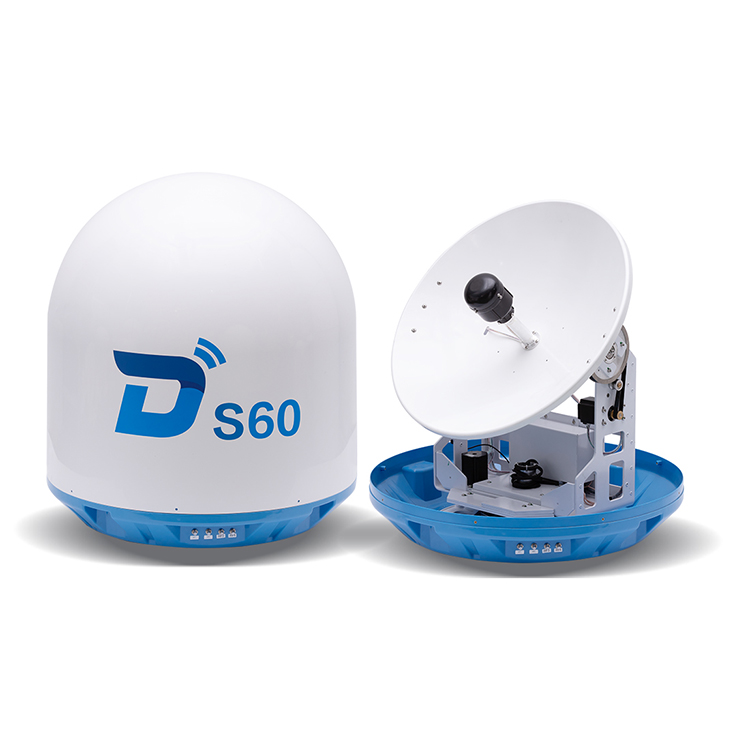

Ditel S60 63cm ku band marine TV antenna
Ditel S60 63cm ku band marine TV antenna

Ditel S60 63cm ku band marine TV antenna

Item No.: S60
Ditel S60 is a marine satellite TV antenna system that has excellent satellite signal reception capability with a 63cm  (24.80”) reflector.
INQUIRY
Description



Ditel S60 offers one of the highest signal strength available with a 63cm (24.80”) reflectors, significantly increasing the coverage area. It is widely used in anywhere in the world as long as the area of Minimum EIRP is over 46dBW.






• Friendly multi-platform user interface.
• The function of switching satellites globally.
• LNB compatible with circular polarization or linear polarization.
• High performance and high stability.
• Automatic tracking and skew control.
• Uninterrupted viewing of full Ku-band channel.






 Radome dimension(WxH)  75*83.8cm (29.5*33.0 inch)
 Reflector diameter  63cm (24.8 inch )
 Weight  26kg (57.3 lbs)
 Radom colour  White/Blue
 Radom material  ASA/ABS
 Environmental humidity  0-95%
 Operating temp. range   -20~70℃
 Platform  2-axis stabilized, 3-axis tracking
 AZ range/ tracking rate   0°～680°/ ±8°@15S
 EL range/ tracking rate   0°~95°/ ±20°@4S
 Skew range/ tracking rate  ±167.5°/ ±20°@4S
 Initial lock                ≤2Min
 Input frequency       10700~13400MHz
 RX gain  36.4dBi  (12.5GHz)
 Power input  AC 100~240V
 Min. EIRP  46dBW
 Polarization  Linear polarization
 Antenna type  Ring focus rear feed antenna
