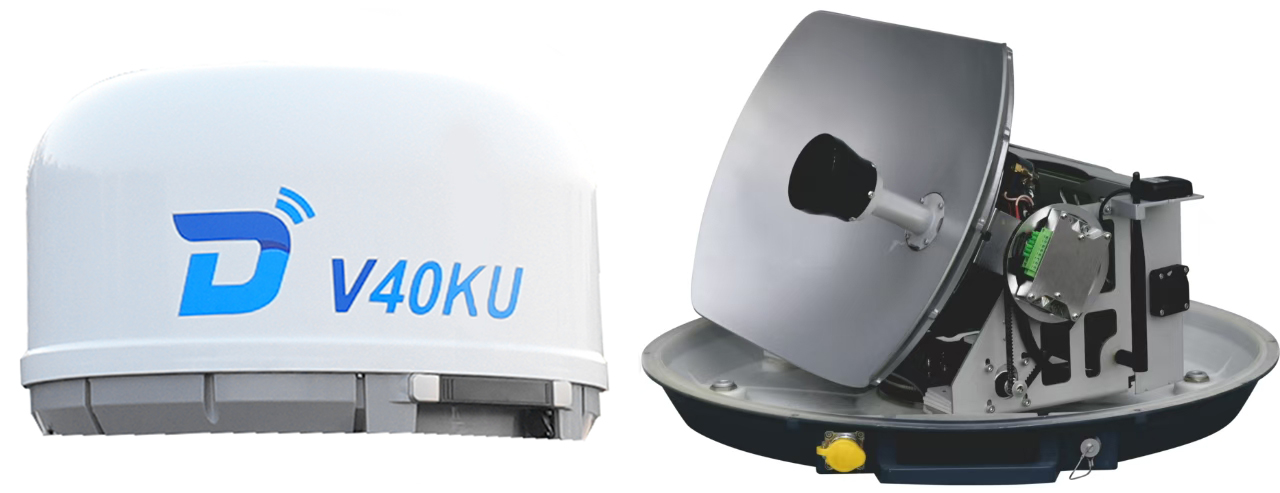

The DITEL V40 is a lightweight, high-efficiency satellite communication antenna designed for outdoor use in the KU band. It supports handheld, backpack, and vehicle-mounted configurations, enabling quick network setup in remote or harsh environments like mountains and deserts. It provides real-time video monitoring, broadband internet, network TV, video conferencing, and VOIP, with global roaming via multi-satellite switching options.




• High Tracking Accuracy  Integrating modems inside the antenna radome , the entire RF link is reduced to less than 1 meter, significantly lowering signal transmission loss.

• Compact and Lightweight  Portable by one person, one-button operation, vehicle-mountable with a simple bracket, no vehicle mods needed, quick setup/removal, and storable inside the vehicle.

• Open Platform Compatibility  The ACU integrates the ABS function and supports the iDirect OpenAMIP protocol for auto beam switching.

• Stable and Reliable Tracking  Using sub reflector cone scanning algorithm,current angle error signal is calculated based on modulation amplitude and phase of the received signal and azimuth and pitch angles are adjusted.

• Low-power Consumption  Dedicated power module with wide-voltage input and stable output, supports vehicle power via cigarette lighter, and offers portable battery operation for over 5 hours of continuous use.

• Advanced  System Control The ACU has built-in Wi-Fi, allowing wireless device users to directly connect. Advanced system control and antenna status monitoring can be achieved using an ACU web interface.
